Rectifier Module LF
PEM.HP.REC.02.B
Description:

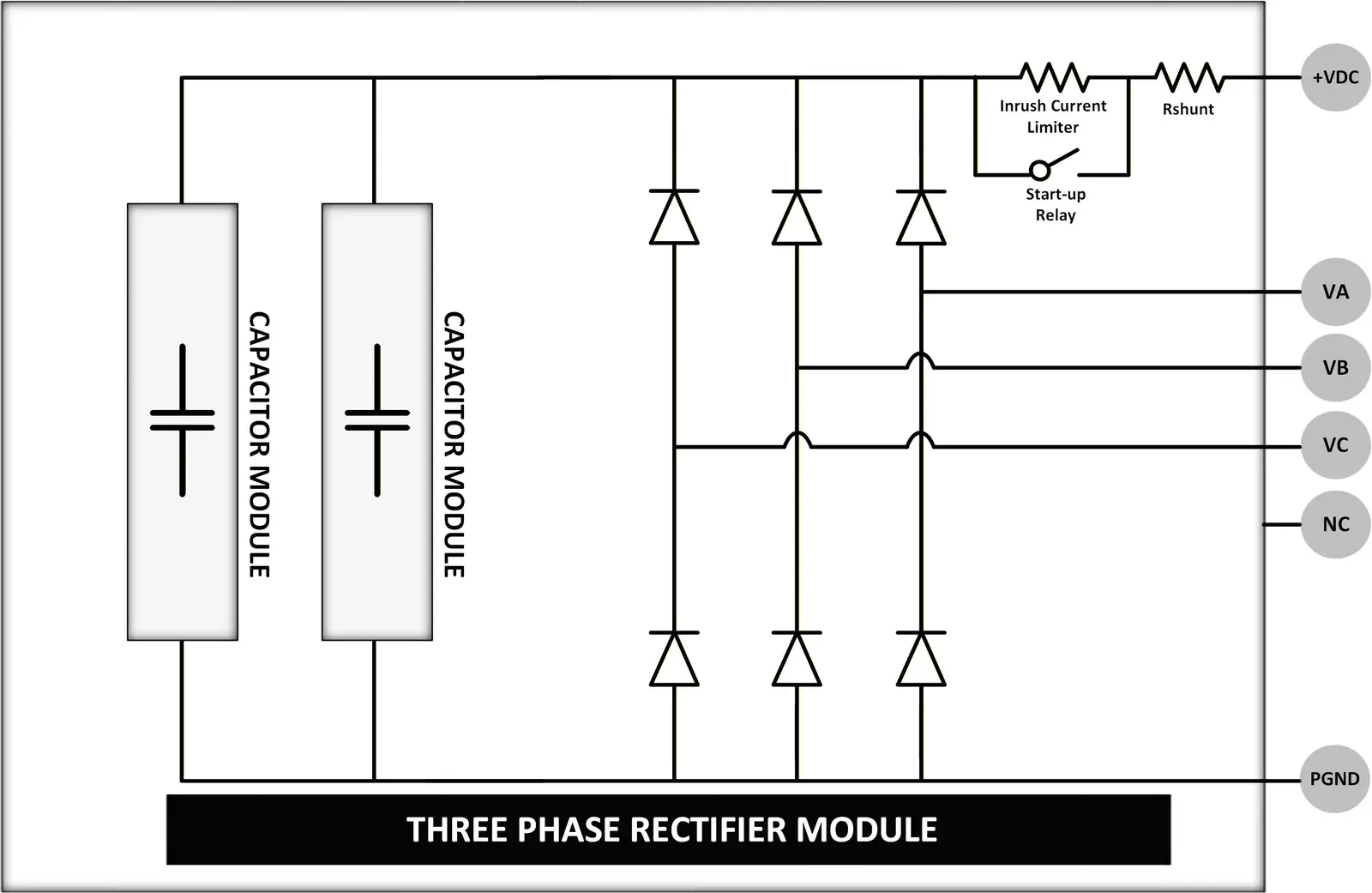

The PEModule PLUGY HP System Three Phase Rectifier Module designed for Low frequency applications including DC Link current and voltage measurement.
Main Features:
- Easy to Replace DC-Link Capacitor Module.
- Forced Air Convection cooling option up-to 120W power dissipation.
- Natural Convection cooling option up-to 35W power dissipation.
- On-board Inrush Current Limiter Resistor with Relay
- Open Power Terminals for multiple configurations
- Compact Size Width 10CM X Length 24CM X Height 12CM.
Follow us!
Follow us!
Rectifier Characteristics
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Reverse voltage | VRRM | 1600 | V |
| Forward Current | IF | 80 | A |
| Diode forward voltage | VF | 1.15 | V |
| AC Input Voltage | Vin | 400 | V |
| Thermal resistance diode junction to case | RthDJA | 1.1 | C/W |
Forced Air Convection Model
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| DC Output Current | Iout | 35 | A |
| Power Losses Dissipation (1) | Plosses | 120 | W |
| Heat Sink Thermal Resistance | R thHS | 0.46 | C/W |
Natural Air Convection Model
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| DC Output Current | Iout | 12 | A |
| Power Losses Dissipation (1) | Plosses | 35 | W |
| Heat Sink Thermal Resistance | R thHS | 1.57 | C/W |
(1) Ta = 25 C.
